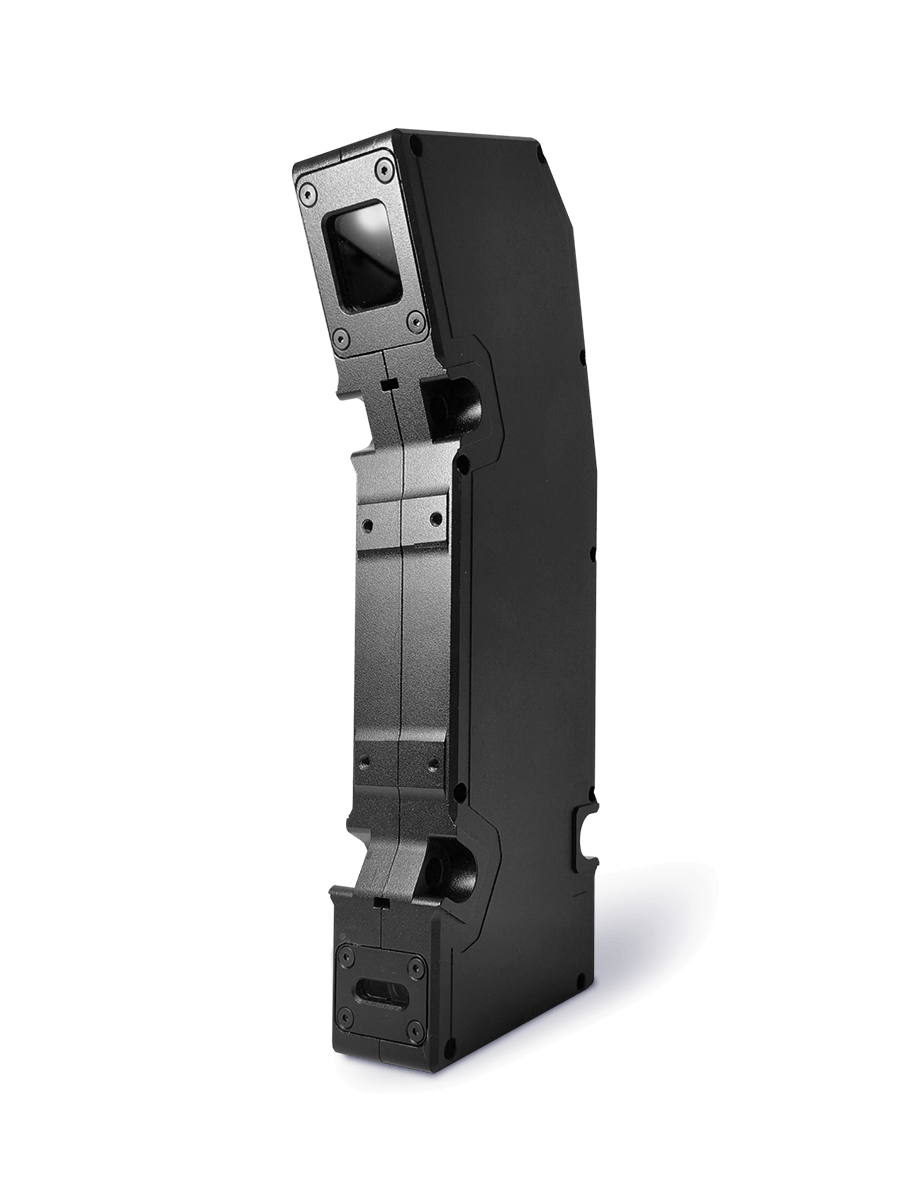

Models AN-02TL, AN-12TL, AN-32TL

Laser scanners are intended for non-contact measuring and checking of the surface profile, position, displacement, dimensions, sorting, 3D scanning, high precision measurement of the geometrical parameters and the object position.

Opportunities:

  • Contactless determination of the surface geometry
  • ​Control and troubleshooting of the finished parts in accordance with the sample
  • Control of the position and the geometry of the objects in real time
  • Creation of three-dimensional models of the object
  • Ability to integrate with robots, machines, automatic lines

Laser scanners

  • group of scanners in a compact housing (compact line)
  • group of scanners in a standard housing (standard line)
  • group of scanners in a large housing (large line)

  • blue lasers (BLUE version), 405 nm
  • green laser (GREEN version), 532 nm
  • red laser (RED version), 658 nm
  • infrared lasers (INFRARED version), 808 nm

Using a variety of lasers is caused by a wide range of tasks of scanning surfaces. The use of blue lasers instead of conventional red ones significantly enhances scanners capabilities, in particular, in control of shiny materials, high-temperature objects and organic materials.
The use of scanners with different laser wavelength in one measurement system avoids scanners mutual influence and greatly simplifies the system construction.

The following additional options can be added to the scanner configuration on the customer’s request:

  • Airflow system - for removing dust, shavings and drops of liquid from the surface of protective windows.
  • Removable windows - for protecting the basic windows from the dust, dirt and shavings.
  • Cooling system (air cooling/water cooling) - for using scanners in conditions of high ambient temperature.
  • Special protective housing - for using scanners in hard industrial conditions.

We can customize scanner configuration to customer's requirements.

scanner housing options
applied lasers
additional options
scanner AN-02TL
scanner AN-32TL
